Cloud

Automatic Vertical Retractable Wall

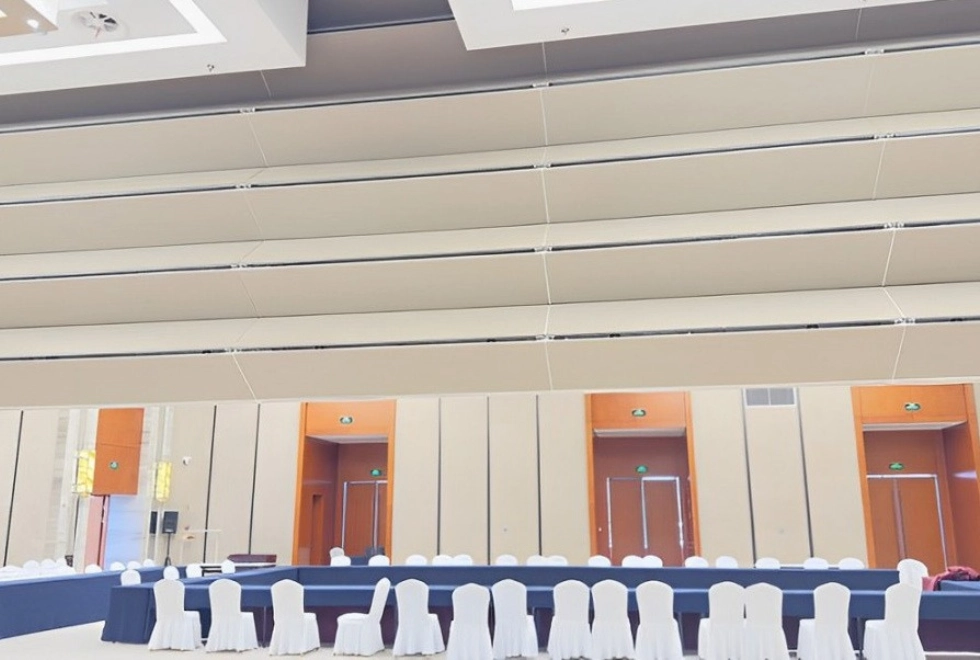

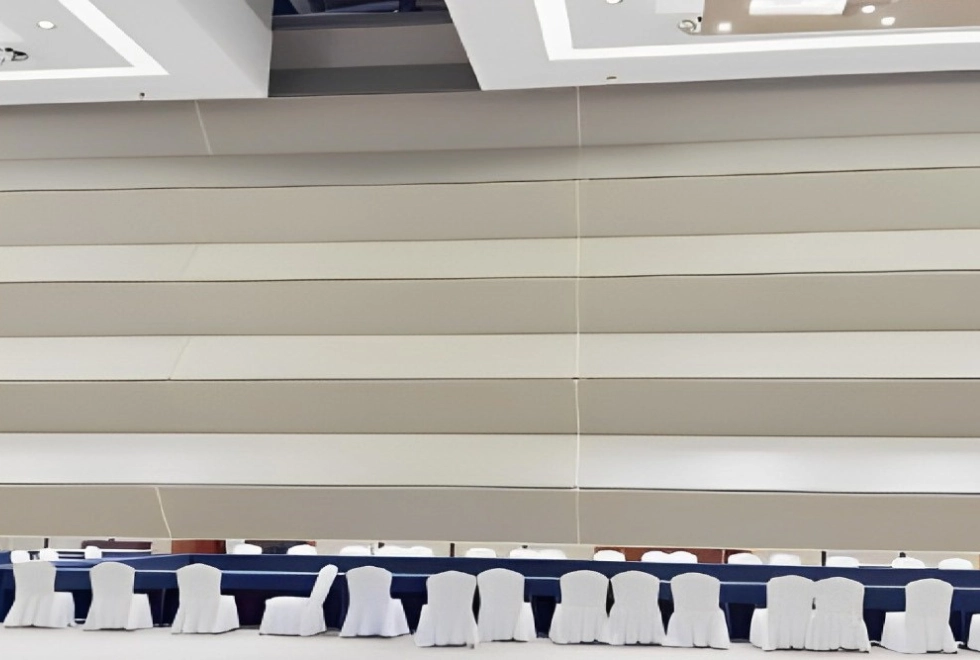

The vertically moving partitions – Cloud is a viable solution when we have limitations in accommodating the parking areas within the interior spaces. The systems consist of vertically moving panels parked above the false ceiling. To create multifunctional spaces in complex areas like theaters and auditoriums with sloped floors or stepped floors Cloud is the optimal choice.

Advantages

Moval Automatic Vertical Retractable Wall is a custom manufactured, fully automatic, flat, rigid retractable wall system that provides vertically folding space division with excellent acoustic properties.

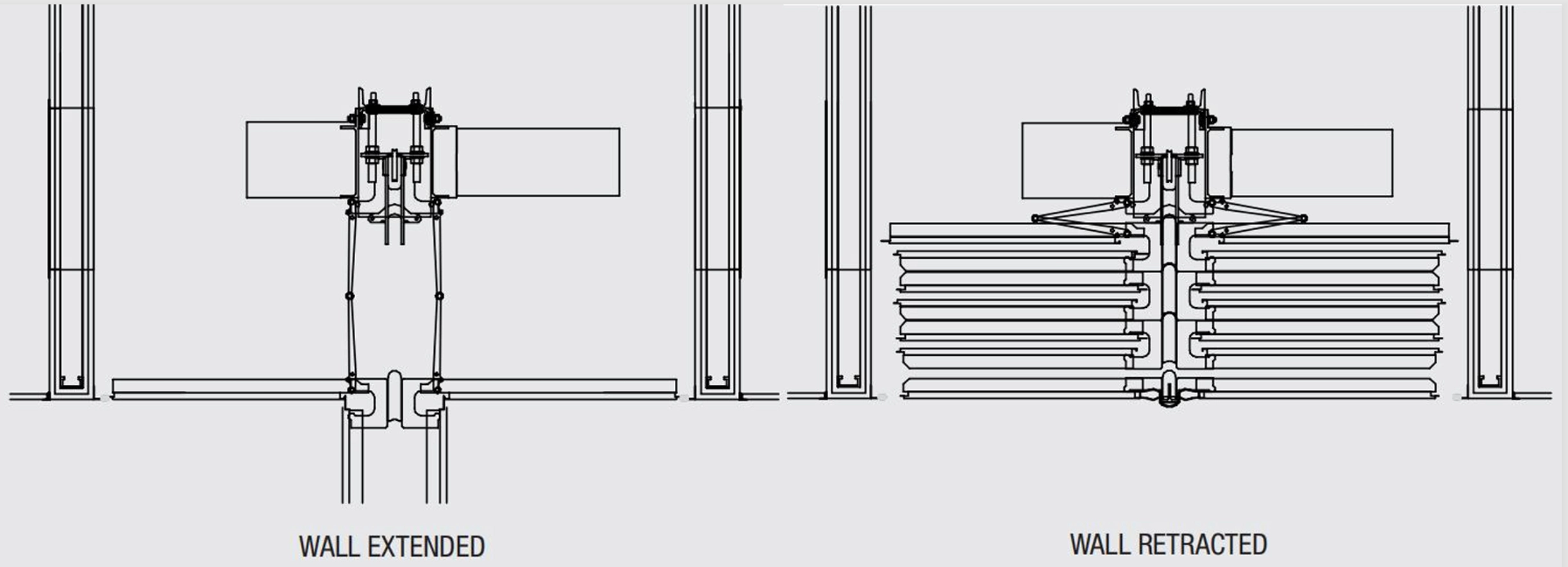

This vertically rising partition stores in the ceiling, no floor or wall tracks are required and there are no side storage pockets saving valuable floor space.

The easy-to-use, self-retracting system and vertical motion of the wall allow for rooms to be quickly divided or expanded.

With a wide selection of finish options that can be mix-and-matched, our walls can be customized to complement, and even enhance the space’s design and function.

Check our stacking systems

Technical specifications

The table below outlines the key technical specifications our vertically folding walls. To learn more options or to discuss the best solution for your space, please login to www.movalsystems.com


Power Supply	3 phase UL listed	Max.Height	10M
Motor Power	Up to 4 KW	Max.Length	Customisable
Rotating Speed	Adjustable	Weight (kg/m²)	37 kg/M²
Open/Close Speed	1.5M to 3M/mnt
Sound Insulation	Min.42dB		Max.62dB
Soft Limit Detection Function	YES	Obstruction Sensor with auto reverse	YES
Life Cycle	12,000 cycles	Ceiling space required for storage	1200mm-1800mm (approx.)
Ambient temperature	-20°~50°C	pocket width	1500mm(approx.)
